My Bed, it's Floating

Post by stuphoto »

My bed is not actually floating, but I built it with the illusion in mind.

Here is the building process

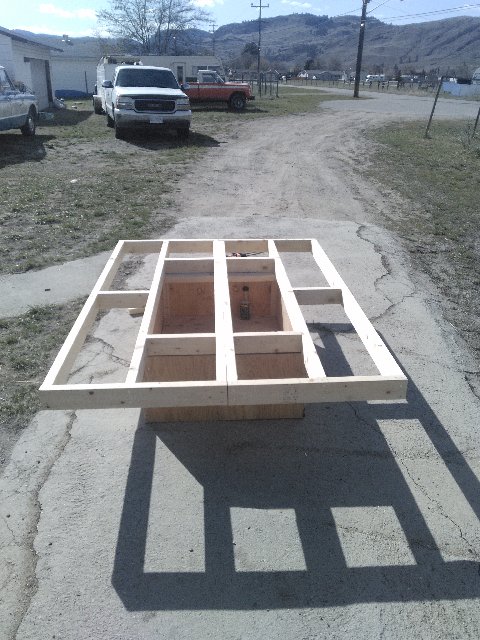

The basic frame built on a box

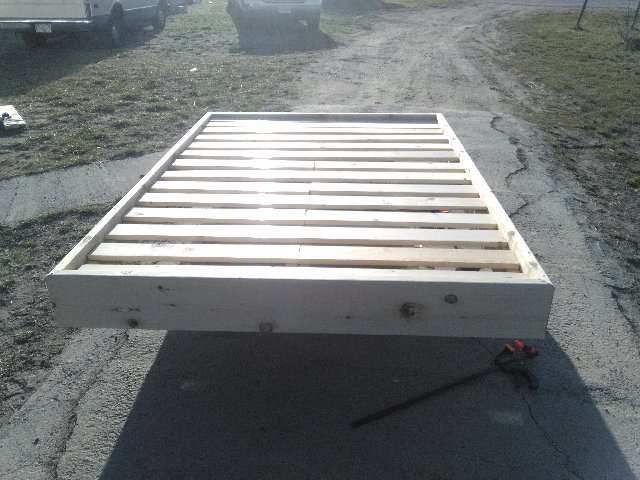

With 1x4 slats 2 1/2" apart rather than a box spring.

I honestly built it 2" higher than my original plan so I could have a nice storage place underneath.

I actually built it in 3 main sections so it can easily dismantle and fit with the base box in my Audi wagon. Plus the 2 platform sections on my roofrack.
This was partly done because the staircase going into my suite has a sharp corner.

As you can see I still have to finish the base.
Since my goal was to make it look like a Modern Antique, I will find some antique looking black fabric. Then wrap it in that.
Oh those mood lights underneath are just from a $ store.
I bought them out but need 3 more.
User avatar
dirtybiker
Walks on Forum Water
Posts: 11444
Joined: Mar 8th, 2008, 6:00 pm

Re: My Bed, it's Floating

Post by dirtybiker »

Dang, nice work BUT !

The 70 to 72 Chev/GMC and the ...not sure J20 ? 4 by, are more interesting to me. :D
"Don't 'p' down my neck then tell me it's raining!"
stuphoto
Grand Pooh-bah
Posts: 2754
Joined: Sep 18th, 2014, 7:41 am

Re: My Bed, it's Floating

Post by stuphoto »

Not my trucks but I know the owner :biggrin:
User avatar
Bsuds
The Wagon Master
Posts: 51212
Joined: Apr 21st, 2005, 10:46 am

Re: My Bed, it's Floating

Post by Bsuds »

I did something similar with our waterbed frame when we switched to a mattress. A king waterbed is a different size compared to a regular king mattress.

The only thing I wish I had done different is made the foot of the bed about 6" deeper so I don't hit it with my toes. It looks like yours is the same in the first picture as it comes right to the end of the mattress. You may end up regretting that.

Other than that it looks good.
All my passwords are protected by amnesia!
User avatar
alanjh595
Buddha of the Board
Posts: 21377
Joined: Oct 20th, 2017, 5:18 pm

Re: My Bed, it's Floating

Post by alanjh595 »

This design also looks like it would be a great "stubbed toe" preventer.

I was also thinking about doing the same, but as far as I got was purchasing the blue rope light.
Bring back the LIKE button.
stuphoto
Grand Pooh-bah
Posts: 2754
Joined: Sep 18th, 2014, 7:41 am

Re: My Bed, it's Floating

Post by stuphoto »

The base is set in 17.5 inches from both ends, and 13.5 inches from the sides.
Since my feet are small I doubt I will ever stub a toe.


Shaq might, but then again he would need a California King or bigger bed :200:
User avatar
oneh2obabe
feistres Goruchaf y Bwrdd
Posts: 89102
Joined: Nov 23rd, 2007, 8:19 am

Re: My Bed, it's Floating

Post by oneh2obabe »

^^^Shaq would need a bigger bed ... California King is 7' long and Shaq stands 7' 1".
Dance as if no one's watching, sing as if no one's listening, and live everyday as if it were your last.

Life is not about waiting for the storm to pass. It's about learning to dance in the rain.
Even Steven
Guru
Posts: 6337
Joined: Mar 24th, 2015, 7:20 pm

Re: My Bed, it's Floating

Post by Even Steven »

Can you make lights go disco during ...umh...Barry White time?
User avatar
Bsuds
The Wagon Master
Posts: 51212
Joined: Apr 21st, 2005, 10:46 am

Re: My Bed, it's Floating

Post by Bsuds »

stuphoto wrote:The base is set in 17.5 inches from both ends, and 13.5 inches from the sides.
Since my feet are small I doubt I will ever stub a toe.


In the first picture it look like the base is even with the end of the mattress. Is that your old frame?
All my passwords are protected by amnesia!
stuphoto
Grand Pooh-bah
Posts: 2754
Joined: Sep 18th, 2014, 7:41 am

Re: My Bed, it's Floating

Post by stuphoto »

Yes, the Illusion Works :crazy:

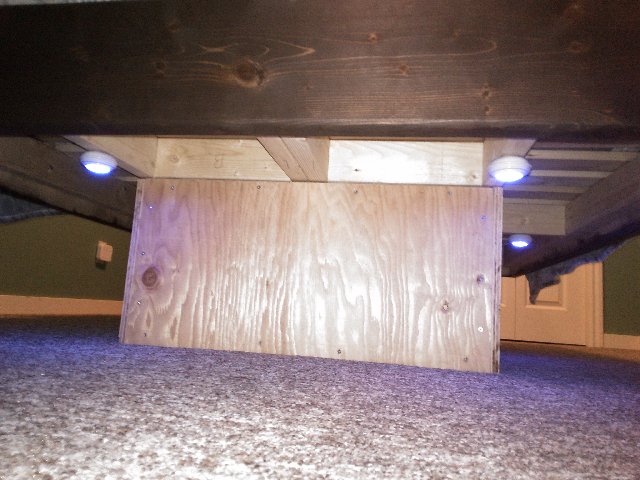

Here is a photo from under the end
I think that the dark outer frame helps with the effects Bsuds.
I once had a bed with a simular outer frame, and they can bash your shins for the first couple days. Then you just automatically start using it as a step without even thinking of it.

And yes those lights have a Disco mode Steven,
Not as programable as I would like but for $4 each they are pretty good.
stuphoto
Grand Pooh-bah
Posts: 2754
Joined: Sep 18th, 2014, 7:41 am

Re: My Bed, it's Floating

Post by stuphoto »

I just pulled back the mattress and removed a couple slats for a better view.

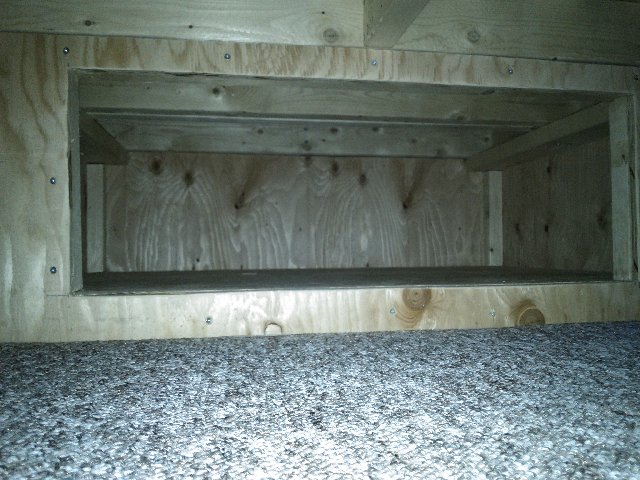

The base corner.
That is 5/8" ply so the bed should last me my lifetime.

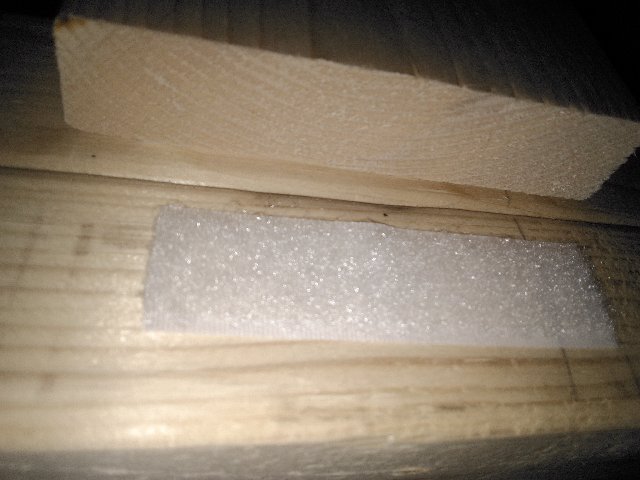

The slats are velcroed on.
It seems like everyone either screws them on or leaves them completely loose. I figure this way they won't move on me, and yet I can remove them easily.

Every 8' 1x4 made 1 1/2 slats. So I had very little wasted wood.
The few scraps went to a friend with a wood stove.

My expected budget was $200 however it honestly cost me almost double that.
As a result I am thinking I may make a good finance Minister :biggrin:
However some of that was buying some tools that I needed anyway like Router bits.
Plus enough screws for 2 beds, and enough stain for 4 beds.
So it probably wasn't that much over budget.
TylerM4
Lord of the Board
Posts: 3601
Joined: Feb 27th, 2014, 3:22 pm

Re: My Bed, it's Floating

Post by TylerM4 »

Looks like a nice solid build!

Is the bed tippy at all if you put all your weight on 1 edge?
Boosted632
Grand Pooh-bah
Posts: 2037
Joined: Oct 14th, 2019, 1:23 pm

Re: My Bed, it's Floating

Post by Boosted632 »

Was this a covid project or do you really have that much free time on your hands
I wouldn't Have to manage my anger if people could learn to manage their STUPIDITY
stuphoto
Grand Pooh-bah
Posts: 2754
Joined: Sep 18th, 2014, 7:41 am

Re: My Bed, it's Floating

Post by stuphoto »

Thank you Tyler,
Very good question. I was wondering the same thing until i finished it.
Without the mattress I could just tip it with my 175 lbs right on the end.
With the mattress its absolutely solid.
I was ready to add weight if needed.
2 people at the end at once would tip it. Probably not 2 people on the side with the shorter overhang.
Next time I would build it those 2" lower and build the base out 2" further.

Unexpected question Boosted,
With several answers.
I am an artist, so I hate ugly or ordinary things. So I wouldn't settle for an ugly bed frame with box spring.
Plus I hate particle board, so you know I won't buy 99% of the junk out now.
As mentioned earlier I have a sharp corner going into my place, so I can't fit a1 piece frame into my pad.
Plus you are sort of right. It did give me something to do.
However with that in mind I have no shortage of projects.

On a side note, I sourced the lumber through 3 stores picking the finest for the section.
The best lumber I found was milled from West Kelowna's very own Gorman Mill.
Very little warping, and in general just nice clean lumber.
Nice work people :130:
User avatar
Queen K
Queen of the Castle
Posts: 66608
Joined: Jan 31st, 2007, 11:39 am

Re: My Bed, it's Floating

Post by Queen K »

Boosted632 wrote:Was this a covid project or do you really have that much free time on your hands


With modern convienances we all have free time on our hands. Or do you churn your own butter? :135:
